l Application:

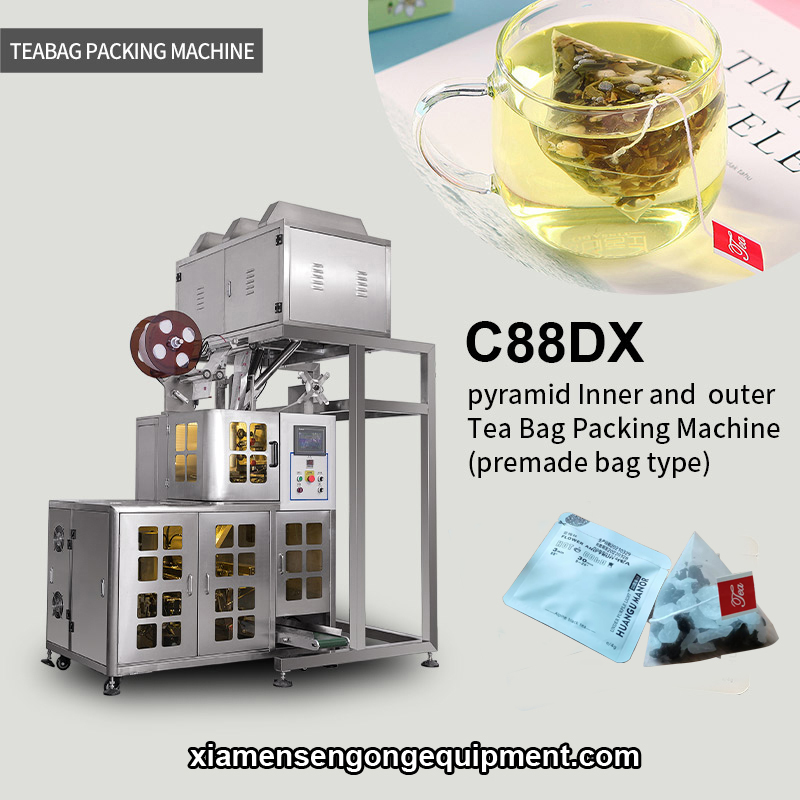

C88DX scale filter fruit tea bag packing machine is suitable for inner and outer teabag packaging for products such as loose leaf tea, herbal tea, health care tea, flower tea, and Chinese local tea like Darjeeling, Assam, Ceylon, etc.
l Features:
1.The packing material of the triangle packaging bag is nylon, non-woven fabric imported from Japan, which is non-toxic, non-bacteria, heat-resistant and high quality food-grade material, conforming to our national safety inspection standard.
2.The machine uses a unique sealing method–ultrasonic. It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.
| Product name | Automatic Pyramid/Flat inner and outer Tea Bag Packing Machine |
| Product model | 4th Generation C88DX |
| Packing speed | 35～55bags/min |
| Filling range | 1～10g/bag, accuracy:±0.1g/bag |
| Filling method | 6 head electronic weigher(6head or 8head weigher can be customized) |
| Sealing length | 50mm,60mm,70mm,80mm |
| Packing material | Nylon, Non-woven mesh, PET, PLA |
| Packing roll width | 120mm, 140mm, 160mm,180mm |
| Outer bag size | L:90-120mm W:80-100mm |
| Power supply | Electricity: 220 V,50HZ, 3 KW Compressed air: ≥0.6Mpa |
| Sealing method | Sealing and cutting by ultrasonic |
| Quantity of sealing device | 2sets |
| Sealing Form | 3 side sealing |
| Weight | 950KG |
| Dimension (L*W*H) | 2000*1350*2450mm |
Sengong Packing Equipment Co., Ltd was established in 2004. It is an in-novative and national high-tech enterprise. Our company specializes in the re-search & development, manufacturing, selling and servicing of itelligent beveragepacking machines(pyramid bag, drip offee bag and tea bag, etc).
We have a very strong and professional ultrasonic technology team and seniorexperiences of production management.
Our products have obtained a greatnumber of national practical patents and invention patents.Sengong is also cer-tified by ISO, CE which ensures the safety standard for all users. With more than ten years ot continuous progress In technology, we have created a series ot saterand more flexible,stable and sanitary equipment,providing advanced packag-ing solutions for global customers. And our machines were sold all over the world including the USA, the UK, Italy ,Canada,Australia, Russia, Turkey, and so on.
Sengong owns an excellent after -sales service team and cloud support system(online). With more than ten experienced
